EffMaker

When to use it
EffMaker software package can be used for measurements of objects activity by gamma-spectrometric methods if the spectrometry calibration by reference standards is difficult, e.g. for measurement of transport containers, packages with radioactive waste, other waste. Objects with arbitrary distribution of activity, which includes nonuniform distribution, can be modeled using this software package. So it can be used for analysis of how radionuclides distribution in the sample affects the activity measurements results. This function presents the promising way of EffMaker using for development and testing of a software and methodological support.

Functions

• detectors and gamma-emitted objects models creation in 3D GUI;


• built-in set of patterns of measurements objects which simplify the procedure of creation of sources with sophisticated geometrical parameters;


• fine adjustment of relative position of the detector and the object, including the option of the detector placing inside the object;


• calculation of spectrum and detection efficiency for the selected geometry;


• batch calculation of detection efficiency for different detectors and objects;


• energy spectrum calculation using energy grid or by setting of activities of radionuclides with consideration of the decay chain;


• the database of cross-sections of interaction of gamma rays with matter for setting of arbitrary material of the object;


• radionuclides database on the basis of ENSDF compatible with Nuclide Master;


• the models and calculation results saving in the database;


• integration of calculation results with SpectraLine software package.

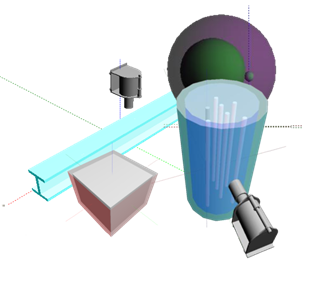

Objects of gamma radiation


The built-in set of patterns in EffMaker simplifies the creation of complex geometrical objects with nonuniform activity distribution. The following patterns are included:

• a truncated cone, with one-layer or two-layer walls;


• an empty or filled tube, open sidelong test tube with internal or external surface contamination;

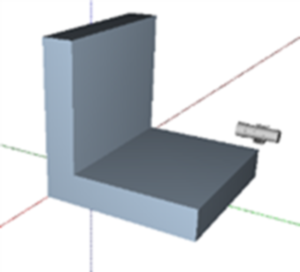

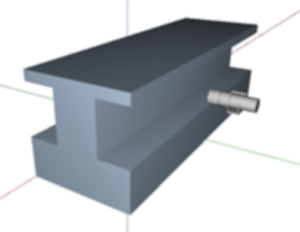

• angle bar and double tee with random orientation, with the contaminated surface;

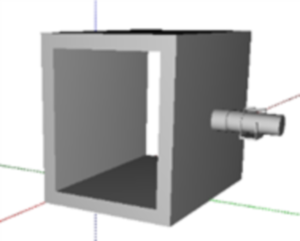

• a box for the air tubes modeling with external contamination, activity can be distributed in internal or external layers.

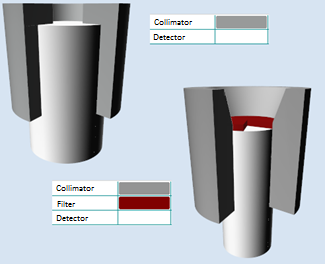

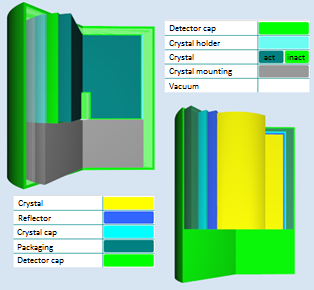

Detection equipment
Scope of application: semiconducting and scintillation detectors and different models of collimators.



Parameters of detectors and collimators models are specified with easy-to-use GUI and stored in the database.

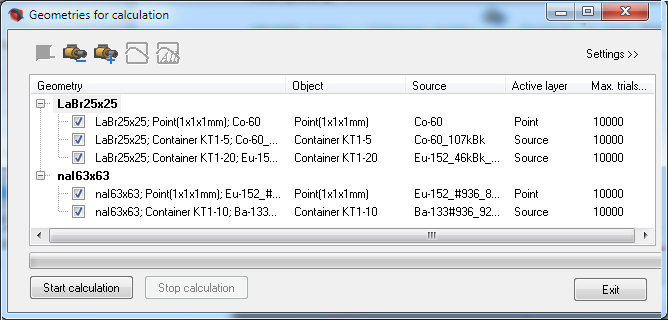

Batch calculation
The detection efficiency can be calculated for the list of configurations in batch mode.


Measurement results: storage and display

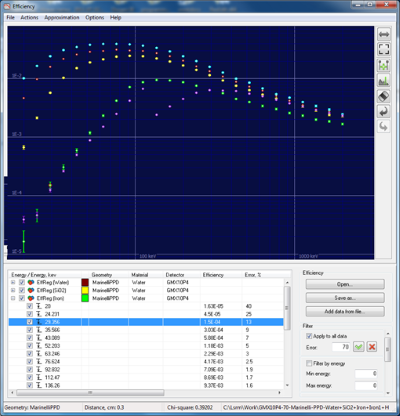

Results of detection efficiency calculation can be viewed using Efficiency utility. The dependence between the efficiency and energy can be displayed, data can be approximated and saved in different formats using this utility. The calculated efficiency data can be used in SpectraLine.


Selective copy
The following functions are provided for selective copying of data:

• creation of empty databases set or databases set with copies of all models (detectors, collimators etc.);


• creation of databases set without calculations results except for the detectors response functions;


• copying of models selected by user to a new or existing databases set.

State Registration
EffMaker software package has been registered in the Register of U.S. Copyright office.
